Rhino PD-55

Parts drawing
Request a Quote1-800-241-9669
← Back to drawings libraryOpen original PDF ↗Download original

Match the model and version on the drawing to your tool. Include the part number or diagram callout when requesting a quote.

All 2 PDF pages appear below. Scroll inside the drawing to see each page, or open the original PDF ↗ for searchable text and full-resolution detail.

Fit drawing. Pinch to zoom on touchscreens.
Page 1 of 2

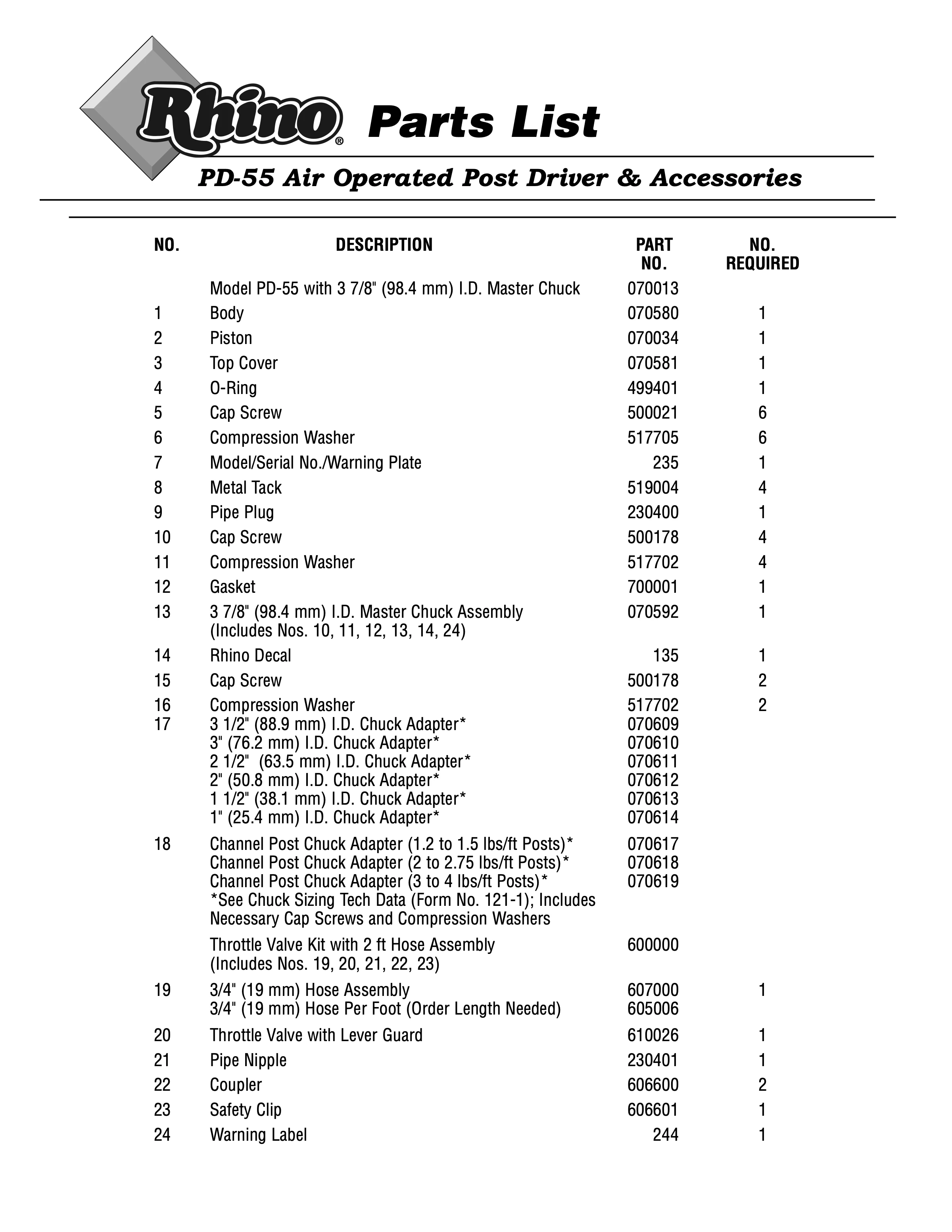

Rhino PD-55 PDF page 1 of 2
Page 2 of 2

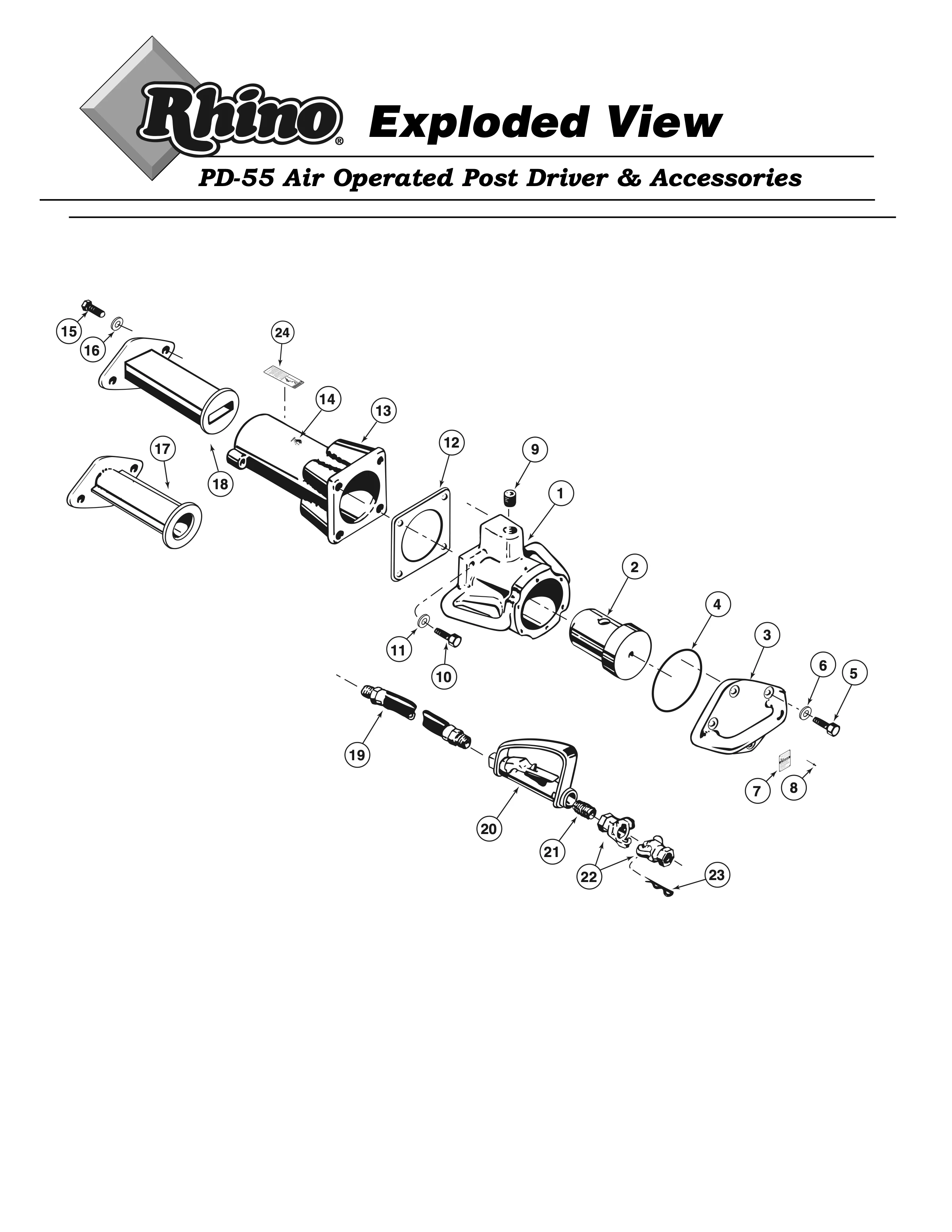

Rhino PD-55 PDF page 2 of 2
