65B Drill Rig

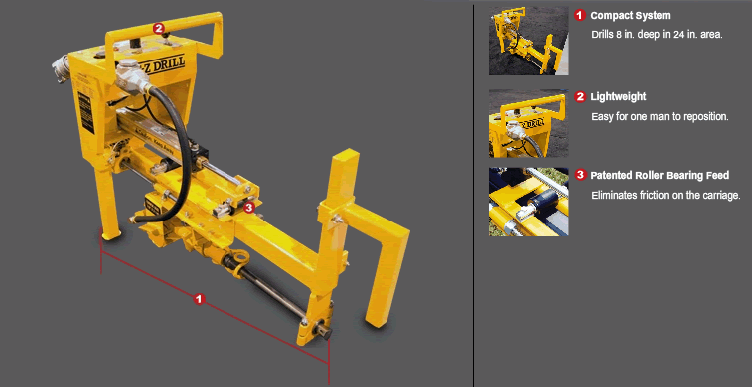

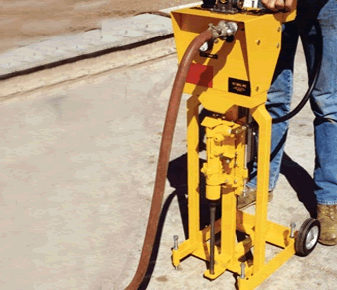

Designed to replace the electric hammer drill, the Model 65B will provide fast and accurate doweling in compact areas. The smallest automated feed system manufactured by E-Z Drill, the 65B is capable of drilling a 1/2 in. to 7/8 in. (12.7 mm to 22.2 mm) diameter hole a maximum of 8 in. (203.2 mm) deep in a 24 in. (609.6 mm) area. Utilizing the CP 9C rock drill this model only requires 20 CFM (0.6 m3/min) for operation.
