Airrex
Merc D-Series Rivet Buster
Airrex Merc D-Series rivet busters are available in 8-inch and 11-inch stroke models. Choose the complete tool model and part number below.

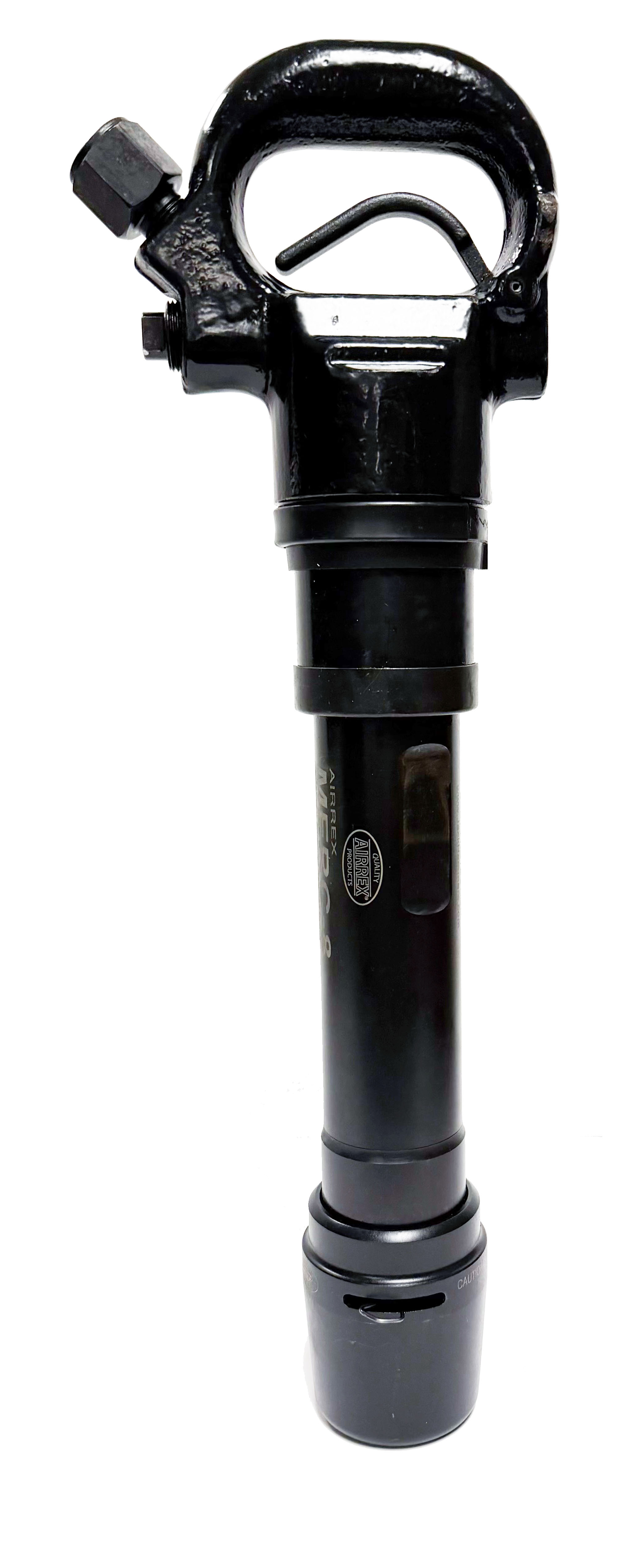

Complete tool: Merc-8DTool part # 3608 D
8-inch stroke · D handle
Your BEST price is just a call away.
I'm interested at JackHammers.comBuy tools and request pricing through JackHammers.com.
1-800-241-9669Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Description | Merc-8D |
|---|---|
| Part no | 3608 D |
| Weight (lb) | 31 |
| Length (inch) | 23,5 |
| Air consumption (cfm) | 44 |
| Air Inlet | 1/2" NPTF |
| Stroke (inch) | 8 |
| Impact frequency (blows/min) | 900 |
| Handle Type | D Handle |
| Chuck size (inch) | Jumbo |
| Retainer Type | Spring |
| Comments | Short Cylinder |
| Vibration level 3 axes (ISO 20643) (m/sec2) | 12,3 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 105 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 93 |

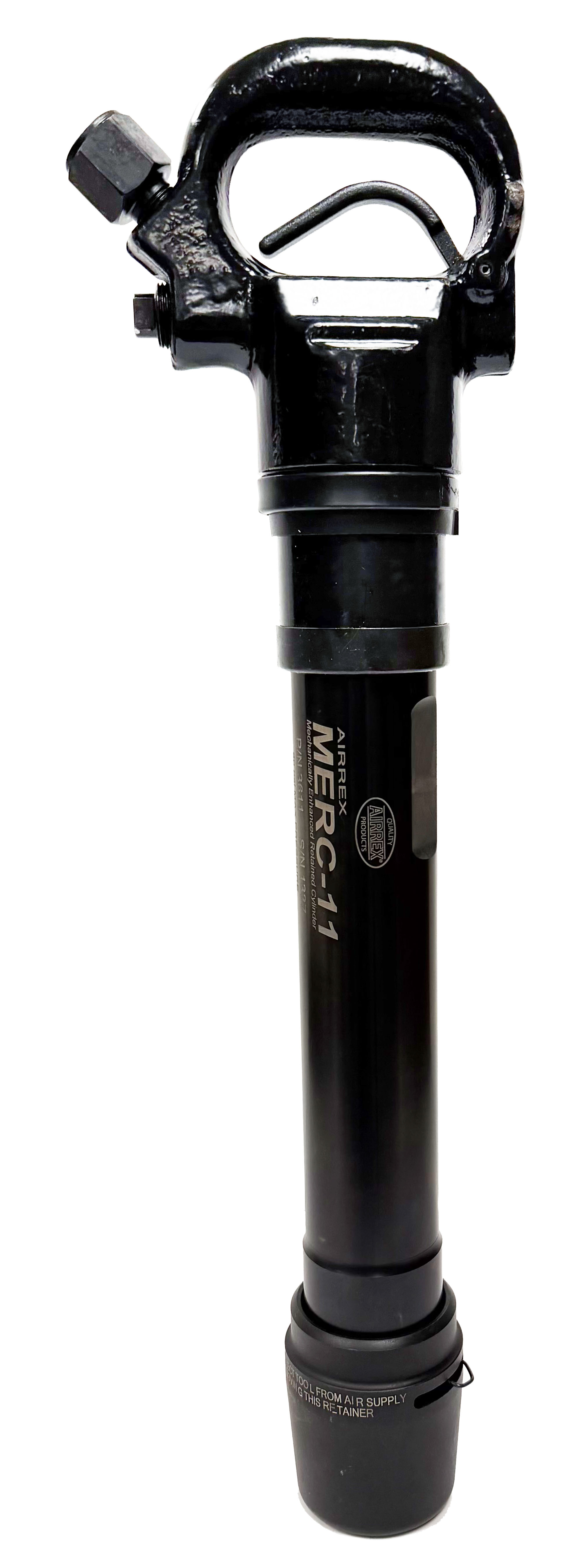

| Description | Merc-11D |
|---|---|
| Part no | 3611 D |
| Weight (lb) | 34 |
| Length (inch) | 26,6 |
| Air consumption (cfm) | 44 |
| Air Inlet | 1/2" NPTF |
| Stroke (inch) | 11 |
| Impact frequency (blows/min) | 720 |
| Handle Type | D Handle |
| Chuck size (inch) | Jumbo |
| Retainer Type | Spring |
| Comments | Long Cylinder |
| Vibration level 3 axes (ISO 20643) (m/sec2) | 14,3 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 105 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 93 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Buy |
|---|---|---|---|
| Merc-8D | 8-inch stroke · D handle | 3608 D | I'm interested at JackHammers.com |
| Merc-11D | 11-inch stroke · D handle | 3611 D | I'm interested at JackHammers.com |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)10" | jb-10rcBuy Here at JackHammers.com |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)8" | jb-p03-8Buy Here at JackHammers.com |
| Under-collar length (inches)12" | jb-p03-12Buy Here at JackHammers.com |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)12" | jb-12pBuy Here at JackHammers.com |
| Under-collar length (inches)18" | jb-18pBuy Here at JackHammers.com |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)12" | jb-12cBuy Here at JackHammers.com |
| Under-collar length (inches)18" | jb-18cBuy Here at JackHammers.com |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)10" | jb-ripBuy Here at JackHammers.com |
| Dimensions / Details | Jumbo 11X |
|---|---|
| Under-collar length (inches)15" | jb-15wcBuy Here at JackHammers.com |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
