Airrex

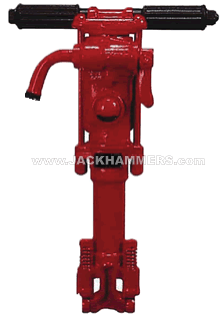

ARD-35 Rock Drill
See complete drill models, specifications and accessory options below.
A small, fast and exremely tough rock drill. When selecting a drill in the size category this tool ranks among the best. Capacity: 2-1/2" diameter x 6" in hard rock or concrete. Please note, as with all rock drills, this tool is designed for use in hard rock or concrete drilling applications. Left Rotation.
Technical Specs
Compare complete drills. + Quote adds one item; review your quote list to adjust quantities.
| Model | ARD-35A | ARD-35B |
|---|---|---|
| Weight | 35 lbs. | 35 lbs. |
| Length | 18-1/2" | 18-1/2" |
| Bore | 1-1/8" | 1-1/8" |
| Stroke | 1-3/4" | 1-3/4" |
| Blows/min | 2450 | 2450 |
| Air Con | 56cfm | 56cfm |
| PSI | 90psi | 90psi |
| Chuck | 7/8 x 3-1/4" | 7/8 x 4-1/4" |
| Complete tool | ARD-35APart ARD-35A7/8" x 3-1/4" HEX (A)I'm interested at JackHammers.com | ARD-35BPart ARD-35B7/8" x 4-1/4" HEX (B)I'm interested at JackHammers.com |
Accessory Tools
“H” Thread Rods & Bits
Drill rodsAH series · 7/8" × 3-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | ||
| 1'6" (18") | ||
| 2' (24") | ||
| 3' (36") | ||
| 4' (48") | ||
| 5' (60") | ||
| 6' (72") | ||
Drill rodsBH series · 7/8" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | ||
| 1'6" (18") | ||
| 2' (24") | ||
| 3' (36") | ||
| 4' (48") | ||
| 5' (60") | ||
| 6' (72") | ||
| Rock bitsBits shown fit all “H” thread rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) |  Cross carbide insert bitFor broken & rough rock |  Button carbide insert bitFor fast penetration |
| 1-1/4" | ||
| 1-3/8" | ||
| 1-1/2" | ||
| 1-5/8" | ||
| 1-3/4" | ||
| 1-7/8" | ||
| 2" | ||
1-inch Rope / R25 / 100 Rods & Bits
Drill rodsAZ series · 7/8" × 3-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | ||
| 1'6" (18") | ||
| 2' (24") | ||
| 3' (36") | ||
| 4' (48") | ||
| 5' (60") | ||
| 6' (72") | ||
Drill rodsBZ series · 7/8" × 4-1/4" shank | ||
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | ||
| 1'6" (18") | ||
| 2' (24") | ||
| 3' (36") | ||
| 4' (48") | ||
| 5' (60") | ||
| 6' (72") | ||
| Rock bitsBits shown fit the 1-inch Rope / R25 / 100 rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) | Cross carbide insert bitFor broken & rough rock | Button carbide insert bitFor fast penetration |
| 1-1/4" | ||
| 1-3/8" | ||
| 1-1/2" | ||
| 1-5/8" | ||
| 1-3/4" | ||
| 1-7/8" | ||
| 2" | ||
1 Piece Plug Bits
| A series · 7/8" × 3-1/4" shank | |||
|---|---|---|---|
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | |
| 9" | 6" | 3/4" | |
| 9" | 6" | 7/8" | |
| 9" | 6" | 1" | |
| 9" | 6" | 1-1/8" | |
| 9" | 6" | 1-1/4" | |
| 9" | 6" | 1-1/2" | |
| 12" | 9" | 5/8" | |
| 12" | 9" | 3/4" | |
| 12" | 9" | 7/8" | |
| 12" | 9" | 1" | A12-100Buy Here at JackHammers.com |
| 12" | 9" | 1-1/8" | A12-118Buy Here at JackHammers.com |
| 12" | 9" | 1-1/4" | A12-125Buy Here at JackHammers.com |
| 12" | 9" | 1-1/2" | A12-150Buy Here at JackHammers.com |
| 18" | 15" | 5/8" | |
| 18" | 15" | 3/4" | |
| 18" | 15" | 7/8" | |
| 18" | 15" | 1" | A18-100Buy Here at JackHammers.com |
| 18" | 15" | 1-1/8" | A18-118Buy Here at JackHammers.com |
| 18" | 15" | 1-1/4" | A18-125Buy Here at JackHammers.com |
| 18" | 15" | 1-1/2" | A18-150Buy Here at JackHammers.com |
| 24" | 21" | 5/8" | |
| 24" | 21" | 3/4" | |
| 24" | 21" | 7/8" | |
| 24" | 21" | 1" | A24-100Buy Here at JackHammers.com |
| 24" | 21" | 1-1/8" | A24-118Buy Here at JackHammers.com |
| 24" | 21" | 1-1/4" | A24-125Buy Here at JackHammers.com |
| 24" | 21" | 1-1/2" | A24-150Buy Here at JackHammers.com |
| 30" | 27" | 5/8" | |
| 30" | 27" | 3/4" | |
| 30" | 27" | 7/8" | |
| 30" | 27" | 1" | A30-100Buy Here at JackHammers.com |
| 30" | 27" | 1-1/8" | A30-118Buy Here at JackHammers.com |
| 30" | 27" | 1-1/4" | A30-125Buy Here at JackHammers.com |
| 30" | 27" | 1-1/2" | A30-150Buy Here at JackHammers.com |
| B series · 7/8" × 4-1/4" shank | |||
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | |
| 9" | 6" | 3/4" | |
| 9" | 6" | 7/8" | |
| 9" | 6" | 1" | |
| 9" | 6" | 1-1/8" | |
| 9" | 6" | 1-1/4" | |
| 9" | 6" | 1-1/2" | |
| 12" | 9" | 5/8" | |
| 12" | 9" | 3/4" | |
| 12" | 9" | 7/8" | |
| 12" | 9" | 1" | B12-100Buy Here at JackHammers.com |
| 12" | 9" | 1-1/8" | B12-118Buy Here at JackHammers.com |
| 12" | 9" | 1-1/4" | B12-125Buy Here at JackHammers.com |
| 12" | 9" | 1-1/2" | B12-150Buy Here at JackHammers.com |
| 18" | 15" | 5/8" | |
| 18" | 15" | 3/4" | |
| 18" | 15" | 7/8" | |
| 18" | 15" | 1" | B18-100Buy Here at JackHammers.com |
| 18" | 15" | 1-1/8" | B18-118Buy Here at JackHammers.com |
| 18" | 15" | 1-1/4" | B18-125Buy Here at JackHammers.com |
| 18" | 15" | 1-1/2" | B18-150Buy Here at JackHammers.com |
| 24" | 21" | 5/8" | |
| 24" | 21" | 3/4" | |
| 24" | 21" | 7/8" | |
| 24" | 21" | 1" | B24-100Buy Here at JackHammers.com |
| 24" | 21" | 1-1/8" | B24-118Buy Here at JackHammers.com |
| 24" | 21" | 1-1/4" | B24-125Buy Here at JackHammers.com |
| 24" | 21" | 1-1/2" | B24-150Buy Here at JackHammers.com |
| 30" | 27" | 5/8" | |
| 30" | 27" | 3/4" | |
| 30" | 27" | 7/8" | |
| 30" | 27" | 1" | B30-100Buy Here at JackHammers.com |
| 30" | 27" | 1-1/8" | B30-118Buy Here at JackHammers.com |
| 30" | 27" | 1-1/4" | B30-125Buy Here at JackHammers.com |
| 30" | 27" | 1-1/2" | B30-150Buy Here at JackHammers.com |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
